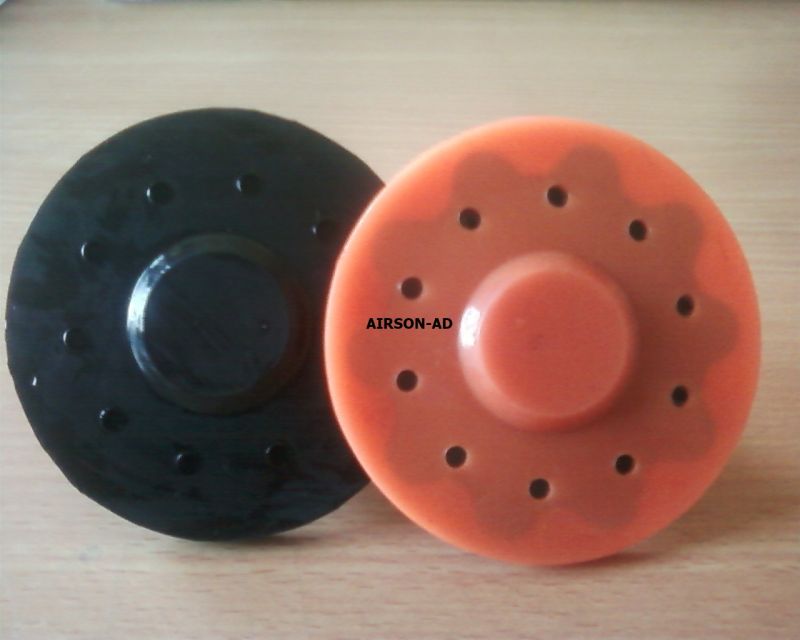

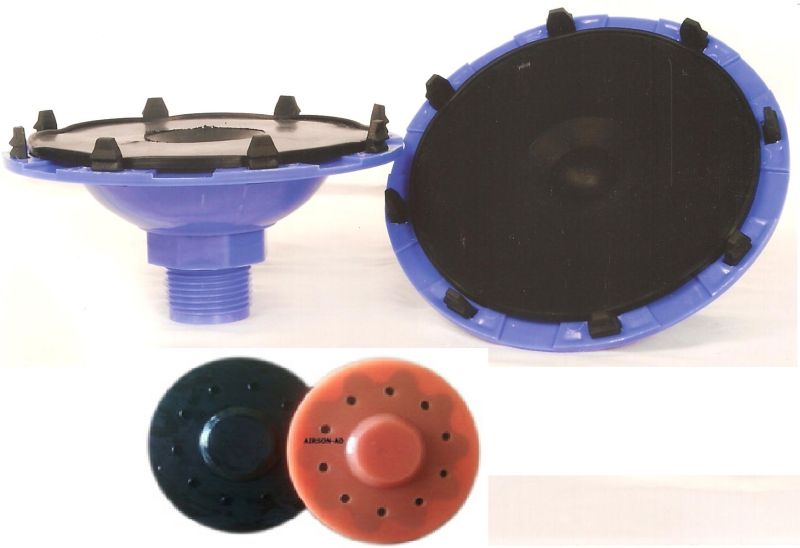

Coarse Bubble Disc Diffuser

Business Type	Manufacturer, Exporter, Supplier
Brand	Airson – AD
Bubble size	4mm to 5 mm
MOC of diffuser	Epdm & Silicon
Click to view more

Preferred Buyer From

Location

Anywhere in India

Product Details

MOC of diffuser support

ABS Imported Raw MAterial

Bubble temperature Tolerance

85 deg Celsius

End connection

¾”BSP male thread

Operating temperature

35 deg Celsius

Type of air discharge

Top air discharge

No of Air Discharge Ports

10Nos

Air Flow Rate per Diffuser

3-4m³/hr

Shape of Diffuser

Disc Type

Note:

Install within 30 days otherwise store in a cool place .
Remove from box,keep away from direct sunlight.
If plant operation in stop & start,before starting the plant clean the diffusers to prevent damage.
Proper maintenance of diffuser will increase the longer life of upto 5 - 7years.

specification

BUBBLE SIZE	4mm to 5 mm
MOC of diffuser	Epdm & Silicon
MOC of diffuser support	ABS
Sizes	Ø150 mm
Type of bubble	Course bubble
Bubble temperature Tolerance	85 deg Celsius
End connection	1”BSP male thread
Operating temperature	35 deg Celsius
Type of air discharge	Peripheral air discharge
No of Air Discharge Ports	8Nos
Air Flow Rate per Diffuser	6-8m³/hr
Diffuser support Color	BLUE
Shape of Diffuser	DISC TYPE
